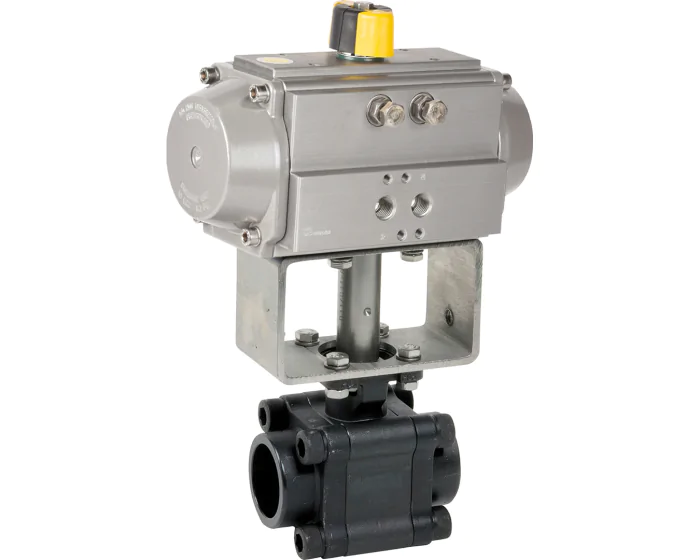

The 702 XS-P series 3-piece body ball valve has a 1.0619 carbon steel body, a stainless steel ball and PEEK seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 137 bar, TS: 250°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 140.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Connections | Welding SW |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 250 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Steam |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Double acting Welding SW | 271362017006R | S1001397 |
€355.17
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Spring return Welding SW | 271362017108R | S1001398 |
€451.69
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting Welding SW | 271363017007R | S1001399 |
€355.37
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Spring return Welding SW | 271363017108R | S1001400 |
€454.01
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting Welding SW | 271364017009R | S1001401 |
€582.40
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return Welding SW | 271364017110R | S1001402 |
€714.96
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Double acting Welding SW | 271365017009R | S1001403 |
€586.51
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Spring return Welding SW | 271365017110R | S1001404 |
€719.06
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting Welding SW | 271366017010R | S1001405 |
€768.40
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Spring return Welding SW | 271366017111R | S1001406 |
€962.47
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting Welding SW | 271367017012R | S1001407 |
€1,447.43
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return Welding SW | 271367017113R | S1001408 |
€1,790.94
(excl. btw)
|
add to cart |
